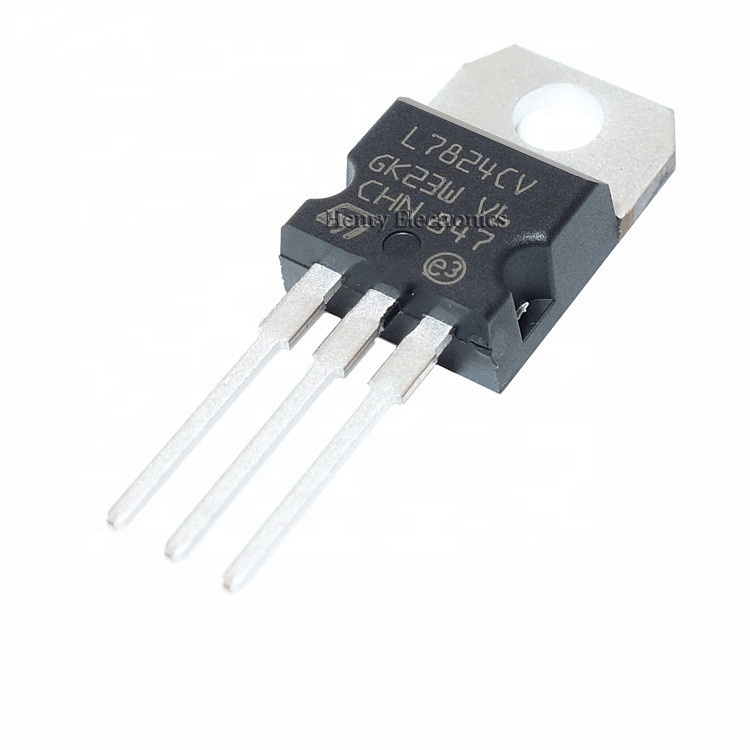

L7824 Positive Voltage Regulator 1.5A 24V REG21, R21

DescriptionWhen designing circuits that interface with industrial equipment, automated machinery, or high-power relay boards, 24V is the industry standard. Feeding these components unregulated or surging voltage can lead to unpredictable behavior or catastrophic component failure. The L7824CV Voltage Regulator acts as an electrical shock absorber. You feed it an unstable or higher voltage (up to 40V), and it outputs a perfectly smooth, continuous 24V DC.The Dropout Voltage RuleLinear regulators like the L7824CV operate by burning off excess voltage as heat. However, to maintain a stable 24V output, the input voltage must always be slightly higher than the desired output. This is known as the “dropout voltage.” For the 78xx series, the typical dropout is between 2V and 3V. This means to get a stable 24V out, your power supply must provide an absolute minimum of 27V DC to the input pin.Thermal Management & HeatsinkingThe L7824CV comes in a rugged TO-220 package featuring a prominent metal tab with a mounting hole. Because this is a linear regulator, any voltage it drops is converted directly into heat. If you feed it 36V and draw 1 Amp of current, the chip has to burn off 12 Watts of heat. Under heavy loads or high input voltages, you must attach an aluminum heatsink to the metal tab. If you do not, the chip will quickly reach its thermal limit and safely shut itself down until it cools off.Capacitors for StabilityWhile the L7824CV is incredibly easy to wire (Input, Ground, Output), it is highly recommended to add small bypass capacitors to your circuit to prevent high-frequency oscillation and ensure a clean output. Standard practice is to place a 0.33µF ceramic capacitor across the Input and Ground, and a 0.1µF capacitor across the Output and Ground.Built-In Fault ProtectionThe 78xx series is legendary for its ruggedness. The L7824CV includes internal short-circuit current limiting, meaning if you accidentally cross your output wires, the chip will restrict the current flow to prevent a fire. It also features thermal shutdown logic, providing an excellent safety net for both students and professional engineers.Key Features:Fixed Output: No external resistors or complex feedback loops required to set the voltage.Virtually Indestructible: Internal thermal overload and short-circuit protection.Low Noise: Provides a much cleaner, ripple-free DC output compared to switch-mode buck converters, ensuring precise sensor readings.Technical Specifications:Output Voltage: 24V DC (±4% tolerance)Maximum Output Current: 1.5A (Heatsink required for continuous high current)Maximum Input Voltage: 40V DCMinimum Input Voltage: 27V DCQuiescent Current: ~5mA to 8mAOperating Junction Temperature: 0°C to 125°CPackage Form: TO-220 (3-Pin)Ideal Applications:Custom 24V DC power supplies for industrial PLCs and sensorsStepping down 36V or 40V battery banks to 24VProviding clean power to 24V heavy-duty relays and contactorsPowering automated HVAC controls and 24V solenoid valves
