L7812 Voltage Regulator REG21,R32

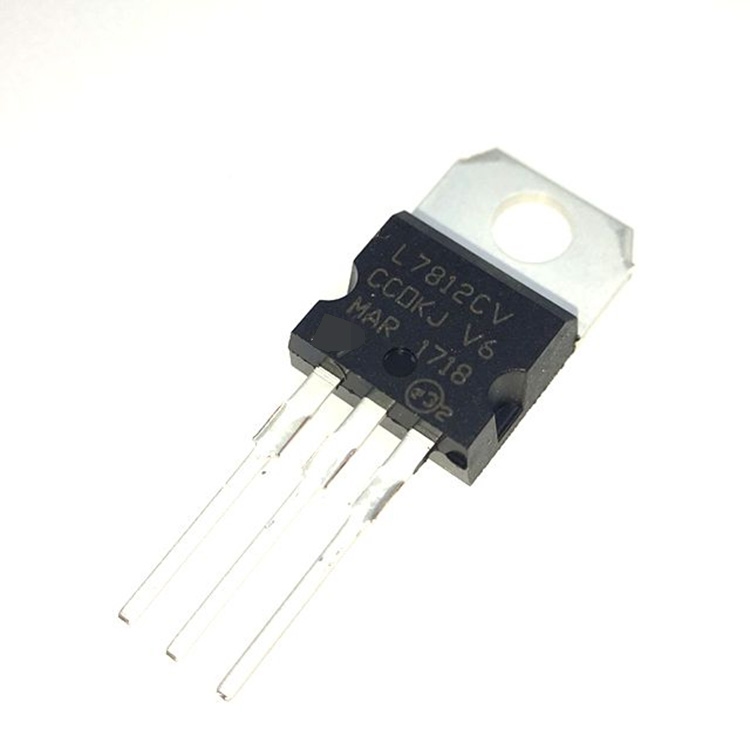

DescriptionWhen designing circuits that utilize 12V mechanical relays, operational amplifiers, or standard LED strips, feeding them an unregulated voltage can lead to unpredictable behavior or instant component failure. The L7812 Voltage Regulator acts as an electrical shock absorber. You feed it an unstable or higher voltage (up to 35V), and it outputs a perfectly smooth, continuous 12V DC.The Dropout Voltage RuleLinear regulators like the L7812 operate by burning off excess voltage as heat. However, to maintain a stable 12V output, the input voltage must always be slightly higher than the desired output. This is known as the “dropout voltage.” For the L7812, the typical dropout is 2V. This means to get a stable 12V out, your power supply must provide an absolute minimum of 14V DC to the input pin.Thermal Management & HeatsinkingThe L7812CV comes in a TO-220 package featuring a prominent metal tab with a mounting hole. Because this is a linear regulator, any voltage it drops is converted directly into heat. For example, if you feed it 24V and draw 1 Amp of current to power a motor, the chip has to burn off 12 Watts of heat. Under heavy loads or high input voltages, you must attach an aluminum heatsink to the metal tab. If you do not, the chip will quickly reach its thermal limit and safely shut itself down until it cools off.Capacitors for StabilityWhile the L7812 is incredibly easy to wire (Input, Ground, Output), it is highly recommended to add small bypass capacitors to your circuit to prevent high-frequency oscillation and ensure a clean output. Standard practice is to place a 0.33µF ceramic capacitor across the Input and Ground, and a 0.1µF capacitor across the Output and Ground.Built-In Fault ProtectionThe 78xx series is legendary for its ruggedness. The L7812 includes internal short-circuit current limiting, meaning if you accidentally cross your output wires, the chip will restrict the current flow to prevent a fire. It also features thermal shutdown logic, providing an excellent safety net for prototyping.Key Features:Fixed Output: No external resistors or complex feedback loops required to set the voltage.Virtually Indestructible: Internal thermal overload and short-circuit protection.Low Noise: Provides a much cleaner, ripple-free DC output compared to cheap switch-mode buck converters, making it ideal for audio circuits.Technical Specifications:Output Voltage: 12V DC (±4% tolerance)Maximum Output Current: 1.5A (Heatsink required for continuous high current)Maximum Input Voltage: 35V DCMinimum Input Voltage: 14V DCQuiescent Current: ~5mA to 8mAOperating Junction Temperature: 0°C to 125°CPackage Form: TO-220 (3-Pin)Ideal Applications:Custom 12V DC power supplies for benchtop testingStepping down 24V industrial or automotive batteries to 12VProviding clean power to audio amplifiers, op-amps, and pre-ampsPowering 12V relays, solenoids, and cooling fans from higher voltage rails
