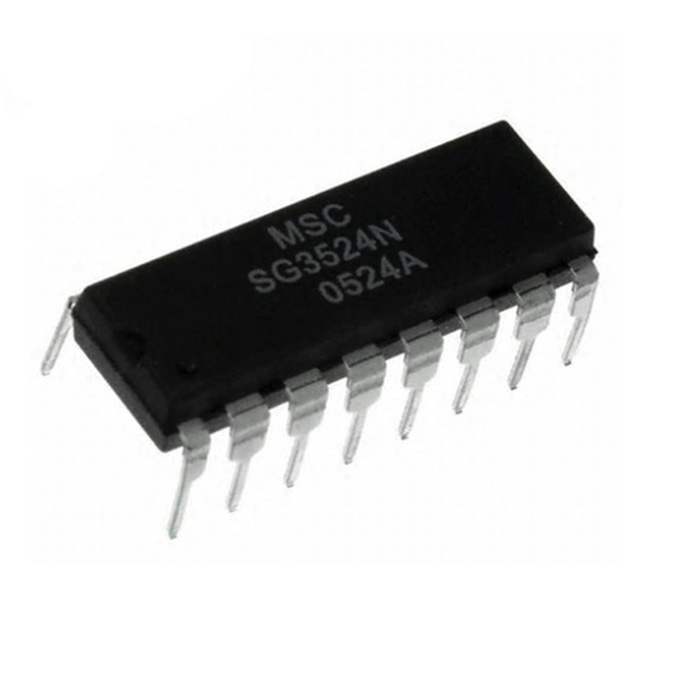

SG3524N Regulating Pulse-Width Modulators COM23

DescriptionBuilding a custom Switch-Mode Power Supply (SMPS) requires precise timing and feedback control. Instead of trying to wire together dozens of discrete operational amplifiers and timers, the SG3524N PWM Controller packages all of that complex circuitry into a single, reliable 16-pin chip.Whether you are designing a high-power DC-AC inverter for a final-year renewable energy project, or building a custom buck/boost converter for an electronics summer bootcamp, this IC is the absolute industry standard for power regulation.Push-Pull or Single-Ended OperationOne of the greatest strengths of the SG3524N is its uncommitted output transistors. You can configure them in a single-ended setup to drive a single power transistor for basic buck/boost converters. Alternatively, you can utilize them in a “push-pull” configuration to alternately drive two heavy-duty MOSFETs—making it the perfect core component for creating pure or modified sine wave power inverters.Built-in Feedback & ProtectionThis chip isn’t just a dumb oscillator; it is a “smart” regulator. It features an internal error amplifier that constantly monitors your power supply’s output voltage. If the voltage drops when a heavy load is connected, the SG3524N automatically adjusts its PWM duty cycle to pump more power and keep the voltage perfectly stable. It also includes dedicated current-limiting circuitry to protect your expensive external power transistors from burning out during a short circuit.Key Features:Complete PWM Control: Combines an oscillator, error amplifier, reference voltage, and output drivers on one chip.Wide Voltage Range: Operates safely on logic-level 8V supplies all the way up to 40V industrial rails.Adjustable Frequency: Easily set the switching frequency using a single external resistor and capacitor (RT and CT).Stable Internal Reference: Provides a highly accurate 5V internal reference for setting precise sensor and feedback thresholds.Technical Specifications:Supply Voltage (VIN): 8V to 40V DCReference Voltage Output: 5V (±5%)Oscillator Frequency Range: ~100 Hz to 300 kHzOutput Current (Each Channel): 100mA (Typical Maximum)Maximum Power Dissipation: 1000mW (1W)Package Type: 16-Pin DIP (Through-hole)Ideal Applications:DIY DC-to-AC power inverters for solar and battery backup systemsCustom Switch-Mode Power Supplies (SMPS)Designing buck, boost, and flyback converter topologiesHigh-power DC motor speed controllers (PWM)Educational power electronics and energy conversion labs
