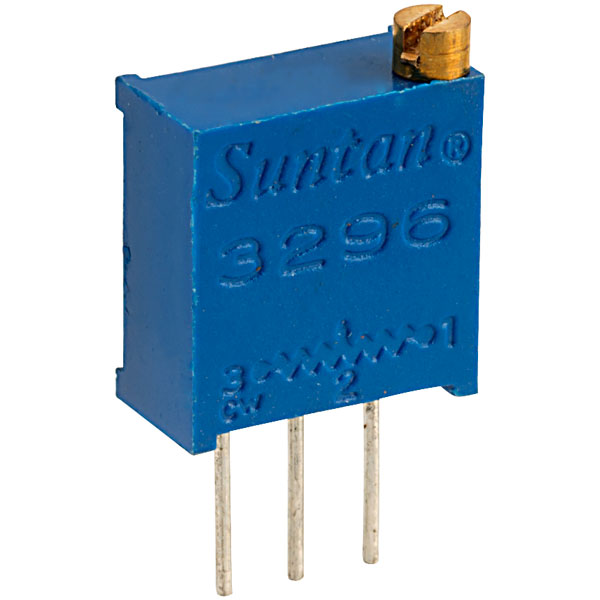

3296W-205 W205 2M Ohm Trimmer Potentiometer COM43, R17

DescriptionIt is an electronic component. It is applied in an electronic circuit for adjusting circuit resistance to control voltage or current of that circuit or part of that circuit. The electrical resistance is varied by sliding a wiper contact along a resistance track. Sometimes the resistance is adjusted at preset value as required at the time of circuit building by adjusting screw attached to it and sometimes resistance can be adjusted as when required by controlling knob connected to it. The active resistance value of the variable resistor depends upon the position of the slider contact on the resistance track.specification Rated Power : 0.5 W Tolerance : 10% Adjustment Type : Top AdjustmentMounting Type : Through Hole Turn Number : Single Resistive Material : Cermet Temperature Coefficient : 100ppm/CTrack Resistance: 2MohmProduct Range: Trimpot 3296 Series ApplicationsIndustrial, Consumer Electronics, Portable Devices, Power Management
