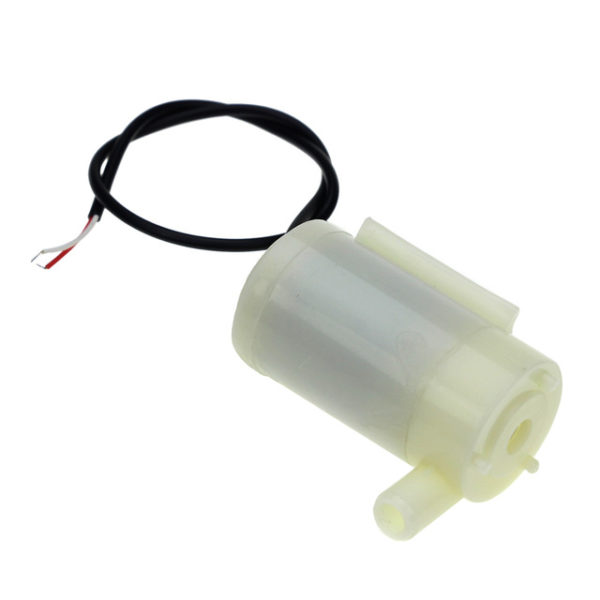

Mini Water / Fluid Pump MOD45 ,R12

DescriptionWhen your hardware project scales up from reading soil moisture sensors to actually taking action and watering the plants, you need a safe and reliable way to move liquids. The Mini Submersible Water Pump is a hobbyist favorite, providing an excellent balance of compact size, safe low-voltage operation, and surprising pumping power.Fully Submersible ArchitectureUnlike heavy diaphragm pumps that sit outside a water tank and pull liquid through a tube, this is a centrifugal submersible pump. It is designed to be dropped directly into your water reservoir. The internal DC motor is completely sealed in waterproof epoxy, ensuring zero risk of electrical shorts. By pulling water directly into its base and pushing it out the side nozzle, it completely eliminates the need for complex, air-tight priming tubes.Driving the Pump (Crucial Circuit Design Note)While this pump operates between 3V and 5V DC, you cannot power it directly from a microcontroller GPIO pin. The internal motor draws between 100mA and 200mA when pushing water, which will quickly burn out the delicate logic pins on an Arduino or ESP32. To control this pump safely:Connect the pump’s power lines to a dedicated 5V power supply or battery pack.Use an NPN switching transistor (like a TIP120) or a standard 5V Relay Module triggered by your logic board to act as the on/off switch for the pump.Compact and QuietMeasuring just a few centimeters long, this pump easily fits inside standard water bottles, mason jars, or custom 3D printed reservoirs. The centrifugal design means it runs virtually silently, making it perfect for indoor desktop fountains or automated pet water dispensers where mechanical noise is undesirable.Key Features:No Priming Required: Drops right into the fluid, ensuring instant pumping action the moment power is applied.Logic-Level Voltage: Runs safely on the same 5V power rails you use to power your sensors and logic chips.Standard Tubing Fit: The output nozzle perfectly fits standard 4mm/6mm flexible silicone or PVC aquarium tubing.Technical Specifications:Operating Voltage: 3V to 5V DCWorking Current: ~130mA to 220mAMaximum Flow Rate: ~80 to 120 L/H (Liters per Hour)Maximum Lift (Head): ~0.3m to 0.8m (Depending on voltage)Waterproof Rating: IP68 (Fully Submersible)Continuous Working Life: ~500 Hours (Not recommended for continuous 24/7 operation)Ideal Applications:DIY Arduino automated plant watering systemsBuilding custom desktop water fountainsCreating active liquid cooling loops for hot electronicsRefilling automated pet water bowls
